What This Talk Covers

• Part 1 — The deceptive start: a simple agent that is already a distributed system
• Part 2 — Async by nature: the right transport model
• Part 3 — When Execution Must Survive
• Part 4 — Checkpointing, conversation history & Human-in-the-Loop
• Part 5 — Security: not an afterthought
• Part 6 — Scalability & cost
• Part 7 — The multi-agent problem
• Part 8 — Configuration & policy complexity
• Part 9 — Packaging & deployment
• Part 10 — Observability
• Part 11 — Ecosystem landscape & Fred positioning

The 5-Minute Agent

response = llm.invoke([
    SystemMessage("You are a helpful assistant."),
    HumanMessage(user_input)
])
print(response.content)

• One model call, one function, zero infrastructure
• Works from a laptop with a single API key
• The demo is impressive — the audience applauds
• "Let's put this in production."

Every agentic project begins here. The complexity that follows is not optional — it is the consequence of real requirements.

First Real Requirement: Knowledge

"Our agent must answer from our documents, not its training data."

The innocent addition:

1. Embed the user query → vector
2. Search the vector store → top-K chunks
3. Rerank results → inject into context
4. Generate with grounded context

What just happened:

• Two new network hops — embedding model, vector store
• Latency variance: 80 ms → 2 s depending on index load
• New failure modes: retrieval timeout, empty results, hallucination on weak matches
• New cost: embedding call + vector search per turn

Second Real Requirement: Tools

"Our agent must do things, not just answer."

Adding MCP tools: filesystem · web search · CRM · calendar · code runner

User message
  → LLM decides: "I need to call the CRM tool"
    → tool call: GET /crm/contacts?name=Alice       (network I/O, 200ms)
    → LLM processes result: "I need more info"
      → tool call: GET /crm/deals?contact_id=123    (network I/O, 350ms)
  → LLM synthesizes final answer
→ Stream to user

One user turn = multiple tool round-trips
Each call is remote, rate-limited, and can fail independently.
Tool errors must produce a sensible response, not a stack trace.

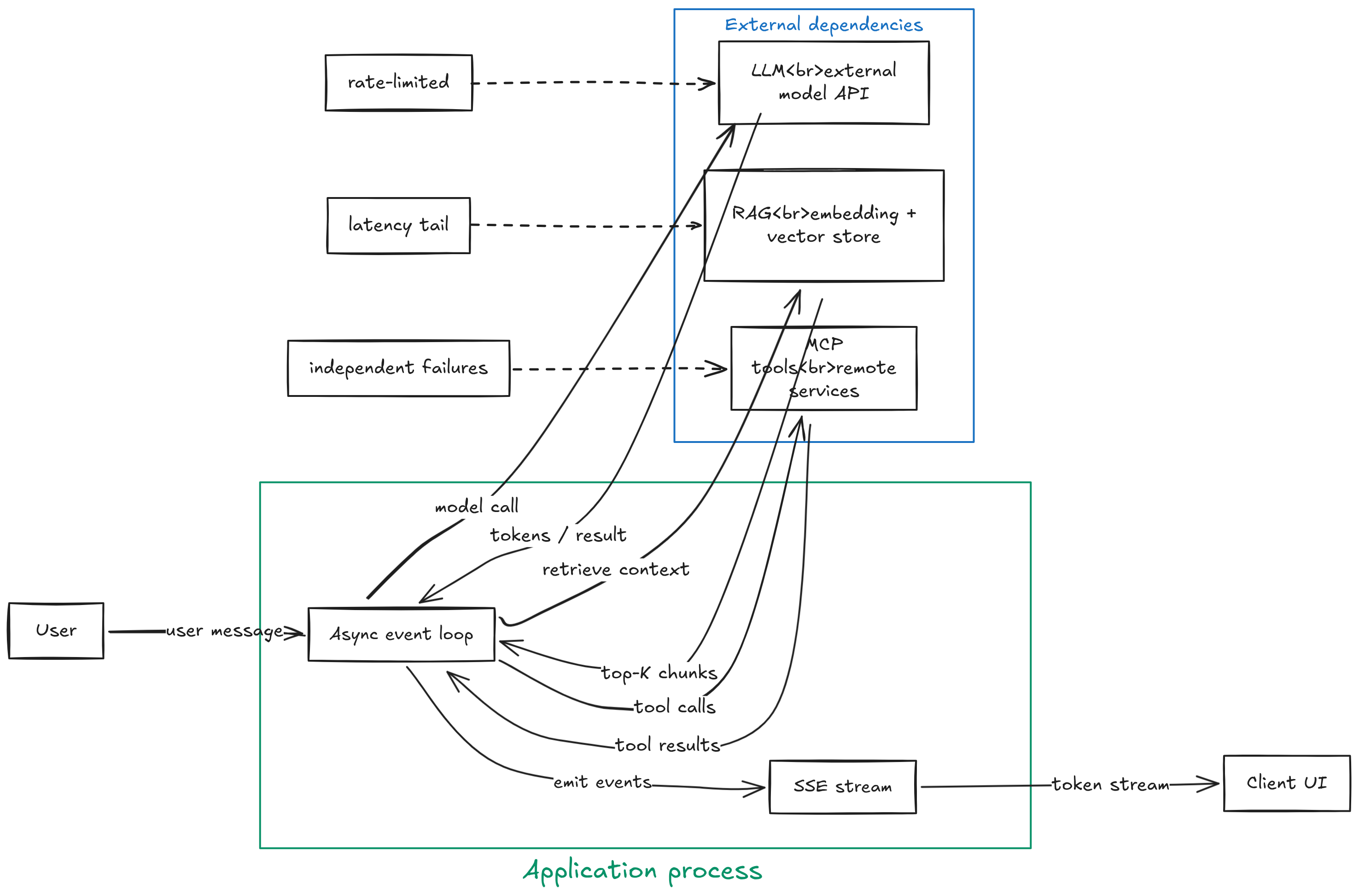

What You Actually Built

The "simple" agent is already a distributed system

The Execution Model

Every external call is I/O-bound and unpredictable

• Sequential await compounds latency — parallel fan-out is necessary
• Token streaming is continuous — the client reads while the agent thinks
• The application is always waiting on someone else's infrastructure

What Breaks When You Ignore This

• Request timeouts at the HTTP layer — agent still thinking, connection dead
• WebSocket fragility — nginx upgrade headers, K8s ingress annotations, load balancer timeouts
• Token stream dropped mid-answer — user sees partial response, no way to resume
• No reconnect semantics — page refresh loses all context
• Sticky sessions required — horizontal scaling becomes painful

Fred's lesson: WebSocket felt natural for streaming but was the wrong default.
Every layer of infrastructure needed special configuration.
The class of bugs it caused triggered the transport reform RFC.

The Right Transport Model

Replace WebSocket with HTTP Streaming (SSE)

POST /agents/execute/stream
Authorization: Bearer <token>
Content-Type: application/json

← HTTP 200  Content-Type: text/event-stream

data: {"type": "token",      "content": "The answer is"}
data: {"type": "tool_start", "tool": "crm_lookup"}
data: {"type": "token",      "content": " 42."}
data: {"type": "final",      "session_id": "abc123"}

• Any reverse proxy handles this without special config (nginx, K8s ingress, CDN)
• Standard Authorization: Bearer header — no token-in-message workaround
• Last-Event-ID enables client-side resume after connection drop
• Works with curl -N, k6, hey — standard HTTP tooling, no sticky sessions

Agents That Take Time

Some work lasts minutes. Some lasts hours. Some waits for human approval.

The HTTP model assumes:

• Request arrives → response returns → done
• Connection lifetime = execution lifetime

Reality:

• Long analysis runs take 10–30 minutes
• Document processing pipelines run overnight
• A bank transfer approval might wait 24 hours
• If the process restarts: the work is lost
• The user sees a spinner forever

Two Execution Worlds

Most frameworks only solve the left column well.

Why You Need a Workflow Engine

• A single request can trigger minutes of work
• Execution may involve multiple steps (LLM · tools · validation · HITL)
• The process must survive:
  • API restarts, network failures, user disconnects
• Some steps require waiting for external input (human approval, events)

You need:

• A way to persist execution state
• A way to resume exactly where you stopped
• A way to coordinate steps reliably over time

This is not a function call anymore. This is a workflow for durable executions. Fred picked Temporal.

Temporal as the Execution Backbone

Temporal is not a queue. It is a durable state machine for long-running work.

• Workflow — deterministic coordinator. No I/O, no LLM calls, no time.time(). Ever.
• Activity — the only place for I/O: LLM, tools, database, object store
• Signal / Update — how the outside world talks to a running workflow
• Retry policy — mandatory on every Activity: timeouts, backoff, non-retryable errors
• Heartbeat — long-running Activities must pulse to stay alive

# Fred mandatory rule
# Workflows MUST NOT:  call LLMs · call tools · read files · use system time
# Activities MUST:     define timeouts · retry policies · heartbeat if long-running

Fred: Agentic Temporal Worker runs separately from the API — independently deployable.

The Streaming Bridge Problem

Temporal workflows produce results asynchronously. The user expects a live token stream.

UI ──► request
        ──► Gateway
              ──► Temporal Workflow
                    ──► Agent Worker Pod
                          ──► Event Stream
                                ──► Gateway
                                      ──► SSE to UI

• Agent authors write normal GraphAgent code — they never see this bridge
• The platform owns the bridge entirely
• The hard part: back-pressure when client reads slowly, worker restart mid-stream, reconnect semantics

Fred Phase 4 — still open work. The foundation (Temporal worker, SSE transport) is in place.

Two Different Problems That Look Like One

State persistence in agentic apps has two distinct needs that must not be confused:

The mistake everyone makes: using the checkpointer for both.

The checkpointer is built for resume. It was never designed as a query layer.

The Checkpointer: Built for Resume, Not History

Checkpointers store the (Lang)Graph execution state.

• What this gives you :
  • Survive process restart mid-conversation
  • Resume a graph from a HITL pause checkpoint
  • Any replica can pick up any session
• What it does not give you :
  • Per-message timestamps, cross-session queries by user_id or agent_id
  • Conversation history for Graph agents (custom state, no messages field)
  • Tamper-evident records, long and configurable retention

Accumulating all messages in MessagesState is an anti-pattern for history.
Turn 50's checkpoint stores all 50 messages again — quadratic storage, opaque blobs.

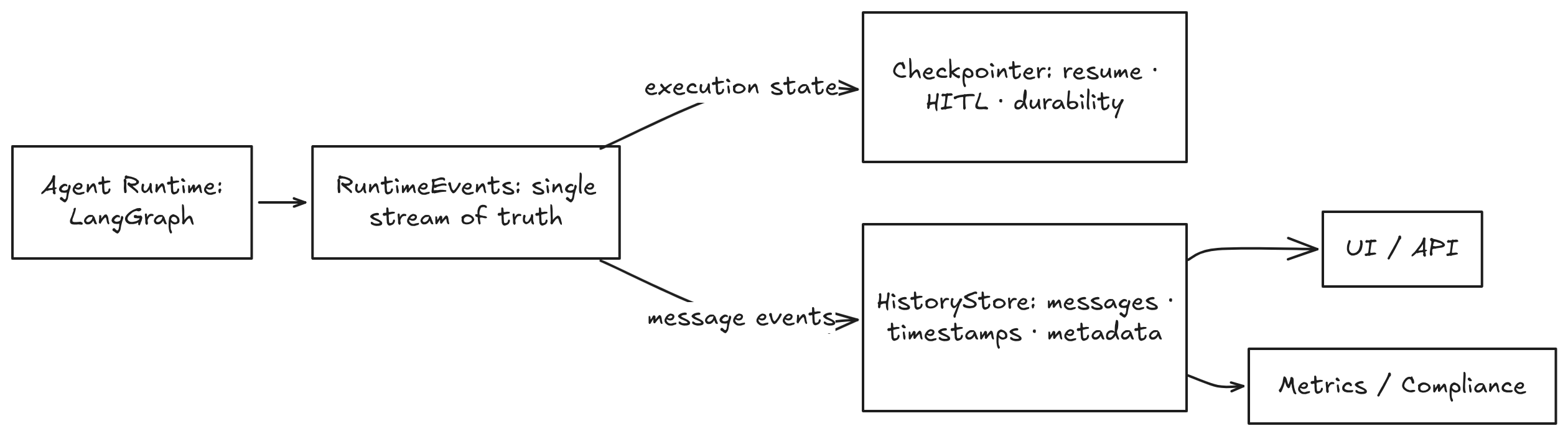

The Dual-Write Pattern

Every agent turn produces two independent writes from the same RuntimeEvent stream:

• the Checkpointer (execution state, for resume) and the HistoryStore (conversation turns, for UI + audit).
• Independent lifecycles — deleting a session does not erase the audit trail.

The HistoryStore: What It Enables

One row per message, written at execution time from RuntimeEvents:

session_id · user_id · rank   (composite PK — idempotent upsert)
timestamp                     (UTC per message — not per checkpoint)
role                          (user / assistant / tool / system)
channel                       (final / tool_call / tool_result / error ...)
exchange_id                   (groups messages belonging to one turn)
parts_json                    (message content)
metadata_json                 (model · agent_id · finish_reason · token_usage)

What it unlocks:

• UI: GET /sessions/{id}/messages — ordered history, no blob decoding
• Multi-session: list all sessions for a user, queryable by user_id
• Compliance: per-message timestamp, survives session deletion, independent lifecycle
• Metrics: token usage per turn, per agent, per time window — directly queryable
• Agent-type-agnostic: ReAct and Graph agents emit RuntimeEvents — same write path

HITL Is Not a UI Problem

"Please confirm before executing the bank transfer of €50,000."

• What actually needs to happen in production:

  1. Agent reaches the confirmation point → pauses durably
  2. User closes the browser, goes home, sleeps
  3. Next morning: user opens app, sees the pending approval
  4. User confirms → agent resumes from the exact checkpoint
  5. If the confirm message is delivered twice → resume is idempotent

• Fred's model:

  • Activity returns status=BLOCKED, workflow waits deterministically
  • Session state owned by the platform, not the UI
  • HITL events are written to the HistoryStore like any other message

What Others Do for HITL

The Attack Surface of an Agent

An agent ingests user content → calls an LLM → calls tools.
Each hop is a trust boundary.

• Prompt injection via RAG — malicious content in ingested documents hijacks agent behavior
• Overly broad tool permissions — agent can delete files, send emails, execute arbitrary code
• LLM output rendered in UI — XSS via generated markdown/HTML if not sanitized
• Credentials in prompts — API keys in system prompts, visible in logs and traces
• Tool response exfiltration — agent instructed to forward data to an attacker-controlled endpoint

The LLM is not the security boundary. The runtime is.

Identity and Authentication

Three distinct identities in an agentic system:

1. End user — authenticated via JWT (Keycloak), scoped to their team and permissions
2. Agent pod — M2M service identity, client credentials flow, bearer token on every outbound call
3. Agent-to-agent — each hop must carry and validate identity; no implicit trust between agents

Fred:

• Keycloak manages users and issues tokens
• Authorization: Bearer on every request — no token-in-message workaround
• M2M configured via security.m2m in AgentPodConfig
• Gatekeeper (inbound user auth check) separated from Relay (outbound token propagation)
• CORS configured per pod via authorized_origins

Authorization: RBAC Is Not Enough

RBAC answers: "Can this user use this agent?" ✓
What you also need: "Can this agent access this team's documents?"

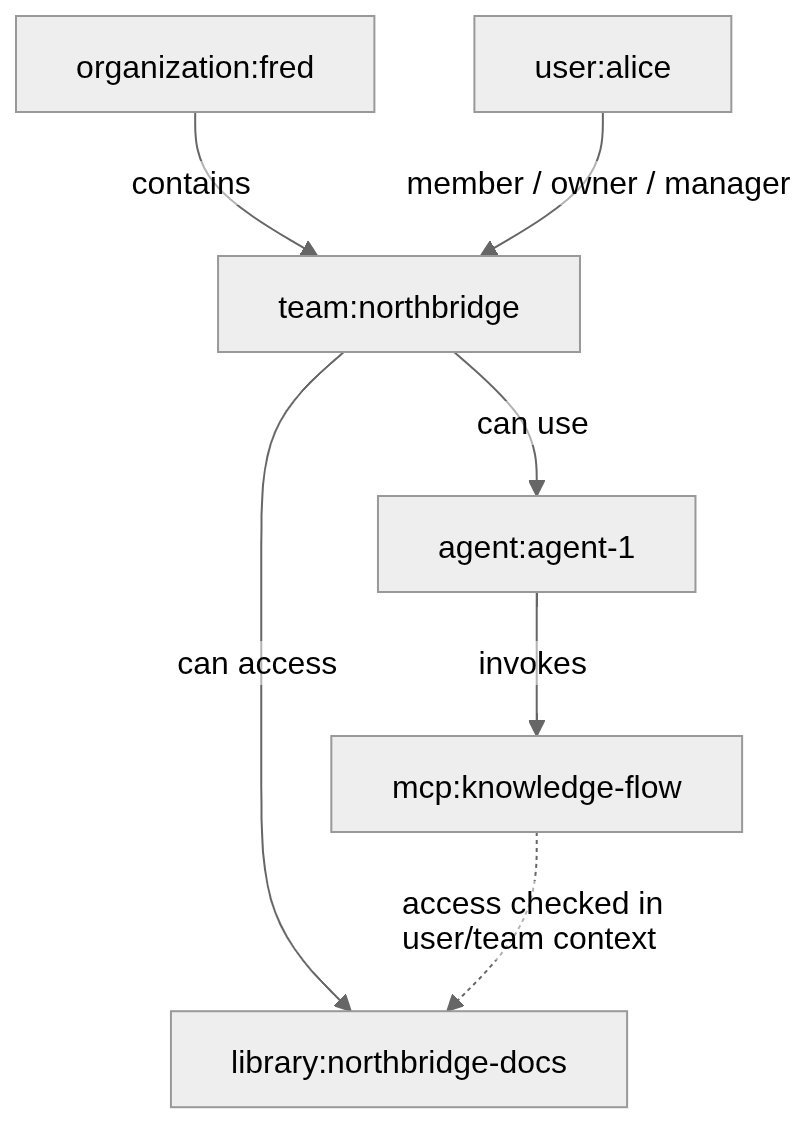

Relationship-Based Access Control — Zanzibar model, OpenFGA:

organization:fred
    admin / editor / viewer   ← global Keycloak roles

team:northbridge
    owner / manager / member  ← OpenFGA tuples (per team)
    └──► library:northbridge-docs  ← only accessible to team members

Key consequence:

• A global admin can still be denied team write operations if not owner/manager of that team
• Agents check team relations before accessing knowledge libraries
• Policy evaluation at the platform boundary — never inside agent code

Policy Is Not Configuration

Fred principle: policy behavior must come from files, never from hardcoded values.

The moment a retention window or a model restriction is written as a constant in code,
it becomes a compliance risk and a maintenance burden.

The Cost Problem

Every agentic interaction is expensive by construction

• LLM call: $0.001–$0.06 per 1K tokens — and context windows keep growing
• RAG: embedding call + vector search + rerank per turn
• Tool calls: network I/O that delays the response and extends the context
• HITL: workflow holds durable state across hours or days

At scale:

• 1,000 daily users × 10 turns × 2K tokens = 20M tokens / day
• One slow tool call that triggers a retry doubles the cost for that turn
• Multi-turn sessions: each turn includes prior history → cost grows quadratically

Agentic apps are not just slower than traditional apps. They are structurally more expensive.

Model Routing

Not all queries need Claude Opus or GPT-4 Turbo.

# models_catalog.yaml  (Fred — RoutedChatModelFactory)
rules:
  - match: { agent_id: "BasicQA" }
    model: gpt-4o-mini           # cheap, fast, sufficient

  - match: { agent_id: "DeepAnalysis", team_id: "research" }
    model: claude-opus-4-6       # capable, expensive, justified

  - match: { user_id: "premium-tier" }
    model: claude-sonnet-4-6     # mid-tier

  - default:
    model: gpt-4o-mini

Per-request rule evaluation on agent_id · team_id · user_id
Routing logic lives in the platform, not in agent code.
Agent authors never hardcode a model name.

Speed vs. Batch

Fred: Temporal workers are separate processes, independently deployable.

• Agentic Temporal Worker → durable agent executions
• Knowledge Flow Temporal Worker → ingestion and indexing pipelines
• Control Plane Temporal Worker → policy-driven lifecycle jobs

Why Teams of Agents?

One agent cannot do everything well.

• Large context degrades LLM quality — focus beats omniscience
• All-knowing prompts are fragile, untestable, and unmaintainable
• Some tasks are naturally parallel: research + writing + fact-checking simultaneously
• Specialization enables independent testing, versioning, and deployment of each agent

The software engineering argument does not disappear when we add LLMs.
It becomes more important.

A monolithic agent is a monolith — with all the operational problems monoliths carry,
plus non-determinism from the model.

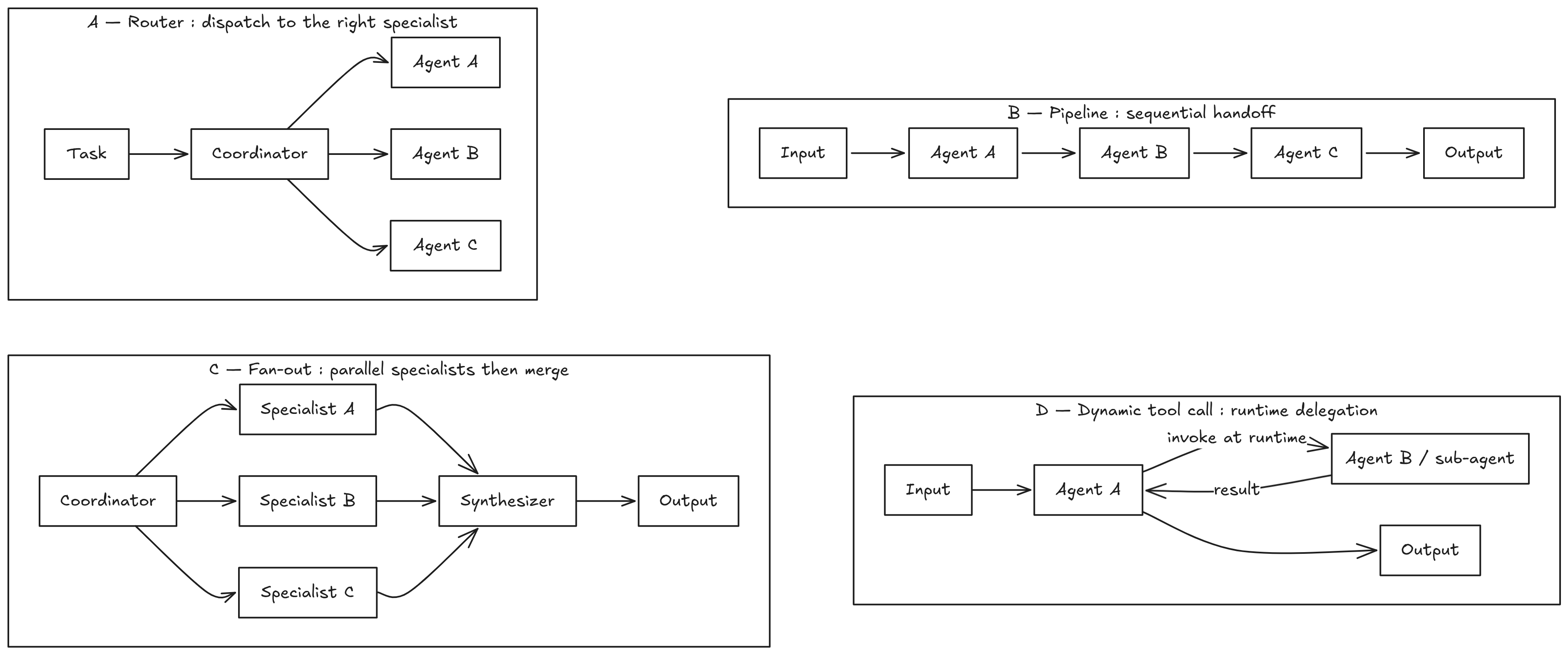

Coordination Patterns

What Breaks in Multi-Agent Systems

• Session ownership — does Agent A or Agent B own the session state?
• Failure propagation — if Agent B fails mid-call, does Agent A retry B, or fail the whole task?
• Streaming — how does the user see progress from Agent B while Agent A is still running?
• Token budget — Agent A sends context to B, B sends context back → cost explodes
• Authorization — can Agent A call Agent B's tools? On whose behalf?
• Versioning — Agent A expects output format v1, Agent B ships v2 silently

Each of these looks like a small problem.
Together, they are the reason multi-agent systems fail in production.

The Software Engineering Challenge

Multi-agent design is a distributed systems problem, not just an AI problem.

Fred's answer:

• Explicit AgentSpec contracts: typed name, role, instructions
• Typed Pydantic state passed between agents — no implicit message passing

What Others Propose

Configuration Explosion

• For each deployment, for each team, for each agent:
  • Which LLM? Which version? Which provider endpoint?
  • Which MCP servers are enabled for this agent?
  • Which knowledge libraries are visible to this team?
  • What is the maximum context length? The timeout?
  • Which output format does the downstream caller expect?

10 agents × 20 teams = 200 potential configuration combinations

Add model routing rules, retention policies, and access control tuples:
→ the configuration matrix becomes unmanageable without structure

First class concern even if simple: every policy comes from a catalog file. No hardcoded values. No team-specific code paths.

The Catalog / Registry Problem

How does the platform know which agents exist and where to route requests?

Static catalog (Fred today):

• Loaded at startup by the platform (Gateway / Control Plane)
• Fully deterministic and auditable — no implicit registration
• Requires restart to add or modify an agent

Dynamic discovery (natural evolution on Kubernetes):

• Agents run as independent pods with their own lifecycle
• Platform routes requests based on live availability
• Discovery handled via standard (K8) mechanisms:
  • Kubernetes Services, DNS, labels, selectors

Policy ≠ Configuration

The moment a retention window or a model restriction is hardcoded as a constant, it becomes a compliance risk and a maintenance burden. Policy evaluation must happen in code, driven by data.

The Monorepo Trap

Today's common pattern: all agents in one process

agentic-backend/
├── agents/
│   ├── bank_transfer/     ← Team A's production agent
│   ├── hr_assistant/      ← Team B's production agent
│   └── data_analyst/      ← Team C's experimental agent
└── main.py                ← all agents start here, together

Consequences:

• One broken agent (OOM, startup exception, dependency conflict) can crash all agents
• Team C's experiment blocks Team A's production release
• Every agent change triggers a full platform redeploy
• A resource-intensive agent degrades performance for all others

This is the Fred v1 problem statement — the reason the pod architecture RFC exists.

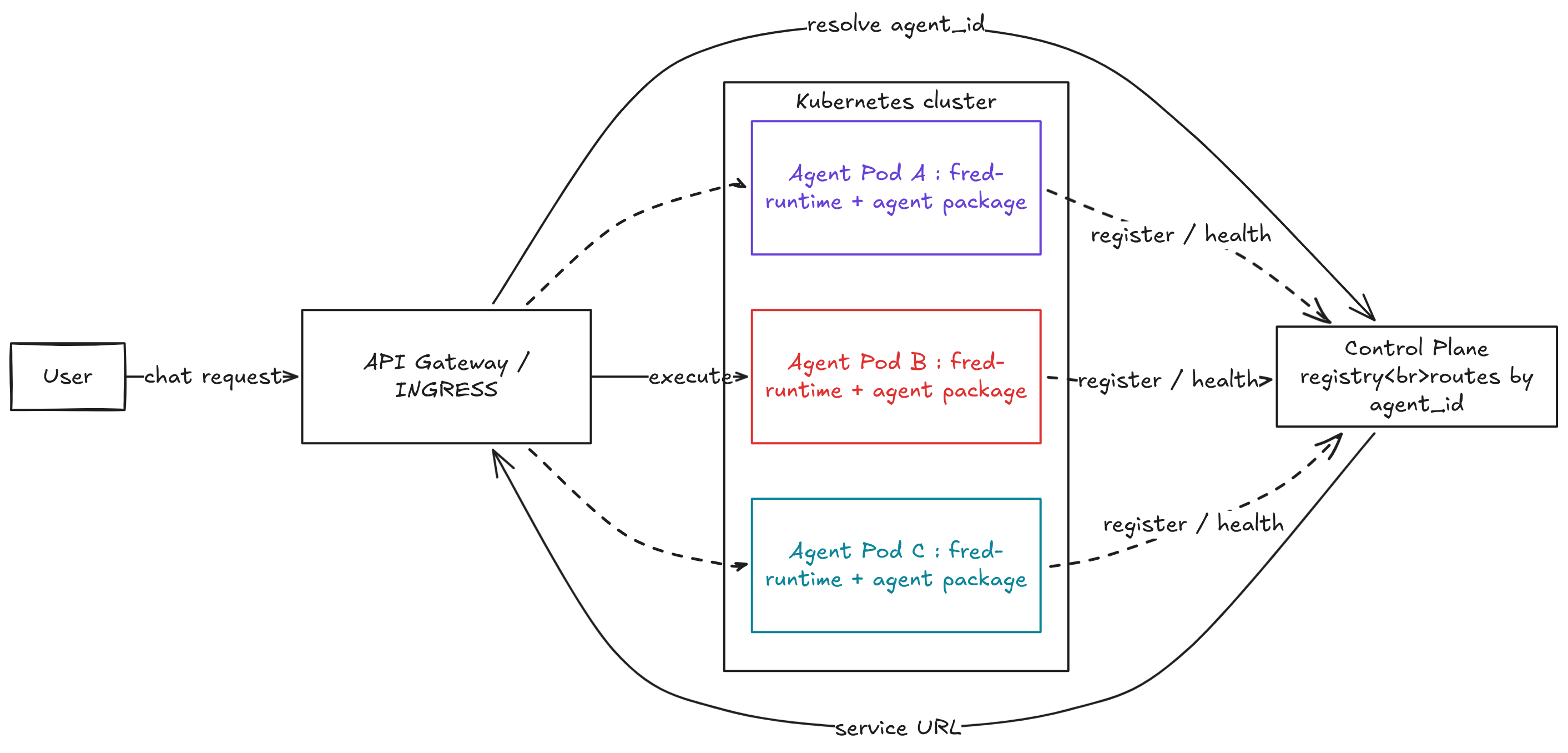

The Pod Model

# Dockerfile
FROM fred-agent-worker:1.0   # runtime, MCP wiring, checkpointing, observability
RUN pip install my-agent-package   # only the business logic

Agent authors write ReActAgent or GraphAgent — they never touch the worker process.

What Comes With the Pod Model

The pod model solves isolation and deployment — but it also brings the standard concerns of distributed systems:

• Base image versioning — SDK upgrade → rebuild and roll out all pods
• Startup coordination — ordering and readiness between Control Plane and agents
• Distributed tracing — one request spans multiple pods
• Metrics aggregation — per-pod metrics → unified observability
• Versioning contracts — runtime and SDK compatibility across agents
• Secret management — per-agent credentials, strict isolation

None of this is new — this is the reality of any microservice architecture. Agentic systems do not remove these concerns. They inherit them.

What You Need to See

• Per request:
  • Token count (prompt / completion / total), cost estimate
  • Latency: time-to-first-token, tool call durations, RAG retrieval score
  • Tool call chain: which tools, in which order, with what inputs/outputs
• Per session:
  • Conversation history, checkpoint state, HITL events
  • Which agent version handled which turn
• Per workflow (durable agents):
  • Temporal history — complete, replay-safe audit trail
  • Status: RUNNING / BLOCKED / COMPLETED / FAILED
• Per pod:
  • Health endpoint, resource usage (CPU / memory), queue depth, error rate

Fred's Observability Stack

Tracer is a protocol in fred-portable — zero platform dependency. Agent tested locally uses NullTracer. Production uses LoggingTracer or Langfuse. Traces are portable across environments without changing agent code.

Framework Landscape

Every framework makes the easy path easy. The differences appear when you go to production.

Protocol Landscape

Fred's position: HTTP SSE over a session contract.

• session_id → checkpoint_ref → resume
• Stateless at the connection level. Stateful at the session level.

The Fred Proposition

The problem Fred is solving:

Agent authoring frameworks make it easy to write an impressive demo. They do not make it easy to operate an agent in production.

Fred's answer — four principles:

1. Authoring stays portable — fred-sdk only, no platform dependency, fully testable offline
2. Runtime owns operational discipline — retries, checkpoints, HITL, streaming: not the author's problem
3. Platform owns policy — model routing, team access, retention: driven by files, never by code constants
4. Infrastructure is transparent — HTTP SSE, standard proxies, no WebSocket magic, no sticky sessions

Fred does not treat the model as the system.
It treats the model as one component inside a larger, controlled runtime.

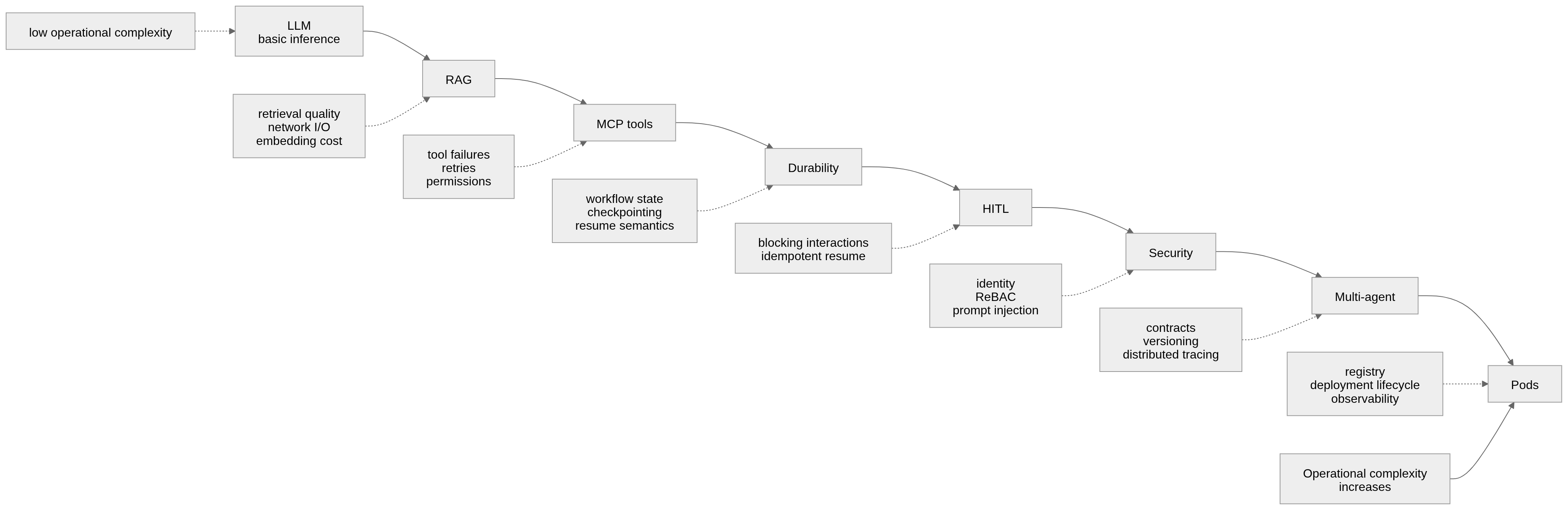

The Complexity Arc Illustrated

The Complexity Arc Checklist

What Fred Brings

A1 — fred-sdk Layer

Agent authors depend only on fred-sdk. The runtime boundary is stable and versioned independently.

A2 — Graph Agent Anatomy

class BankTransferAgent(GraphAgent):
    agent_id = "bank.transfer.v2"
    input_schema  = TransferInput    # typed Pydantic — validated at entry
    state_schema  = TransferState    # typed Pydantic — persisted by checkpointer
    output_state_field = "confirmation"

    workflow = GraphWorkflow(
        entry="classify",
        nodes={
            "classify":  classify_step,     # LLM intent router
            "validate":  validate_step,     # business rule check (no LLM)
            "confirm":   confirm_step,      # request_human_input → BLOCKED
            "execute":   execute_step,      # tool call: POST /transfers
            "on_error":  error_step,        # explicit error path
        },
        edges={"validate": "confirm", "confirm": "execute"},
        error_routes={"execute": "on_error"},
    )

Explicit state · Explicit steps · Explicit transitions · Explicit error paths · Fully testable offline

A3 — Temporal Rules Quick Reference

Workflows MUST NOT:

• Call LLMs, MCP servers, HTTP APIs, databases
• Read/write files, object stores, or networks
• Use random, time.time(), uuid4() (use Temporal APIs instead)
• time.sleep() — use await workflow.sleep() instead

Activities MUST:

• Define schedule_to_close_timeout and start_to_close_timeout
• Define retry policies with explicit non_retryable_error_types
• Heartbeat regularly when running longer than a few seconds

HITL MUST:

• Return status=BLOCKED from Activity — never block waiting inside an Activity
• Wait via Update handler in Workflow (preferred over Signal)
• Resume idempotently — safe to replay if the Update is delivered more than once

A4 — ReBAC Model (Fred / OpenFGA)

A5 — HTTP Streaming vs WebSocket

HITL resume — user sends approval after closing the browser:
→ new POST /resume/stream request — not a message on the same connection
